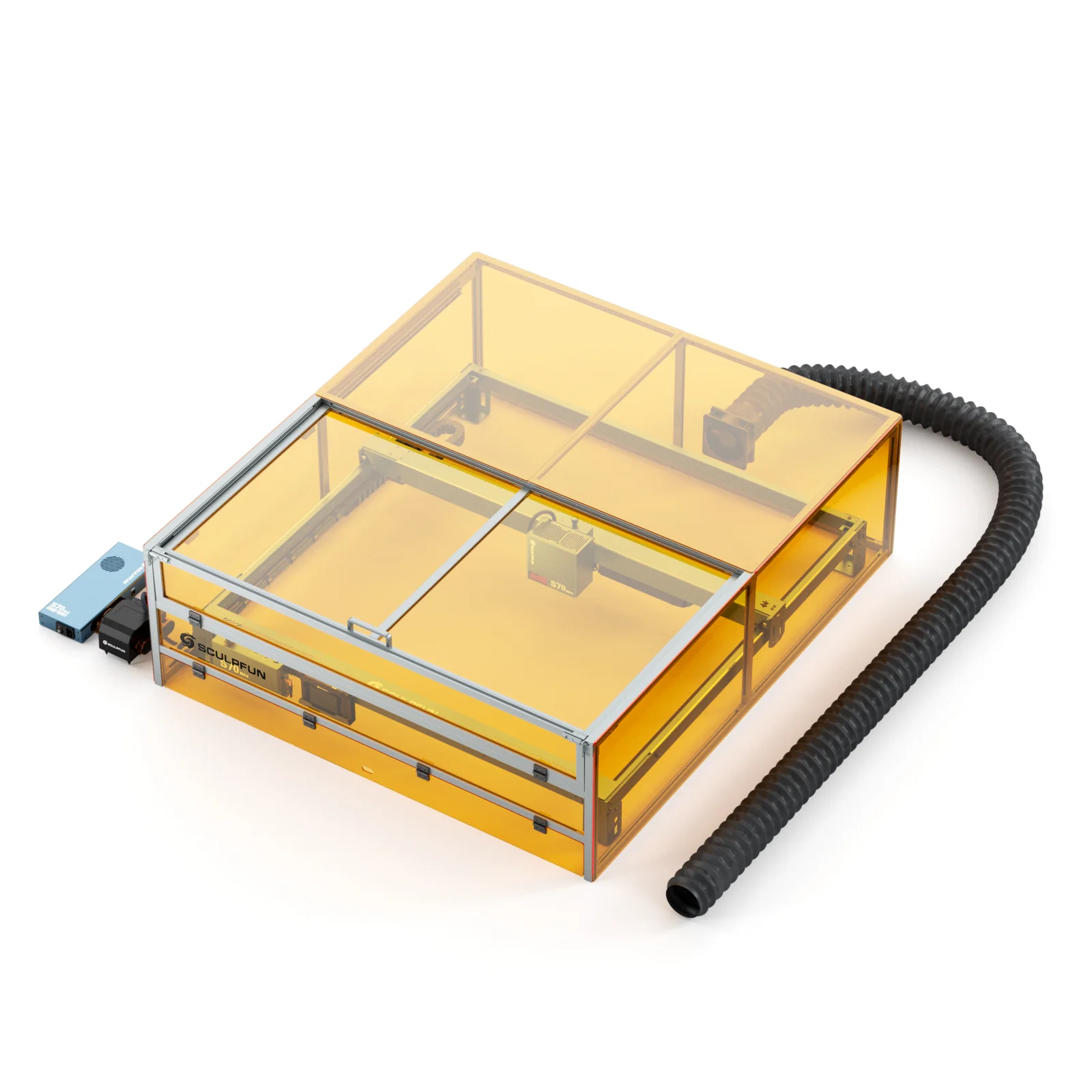

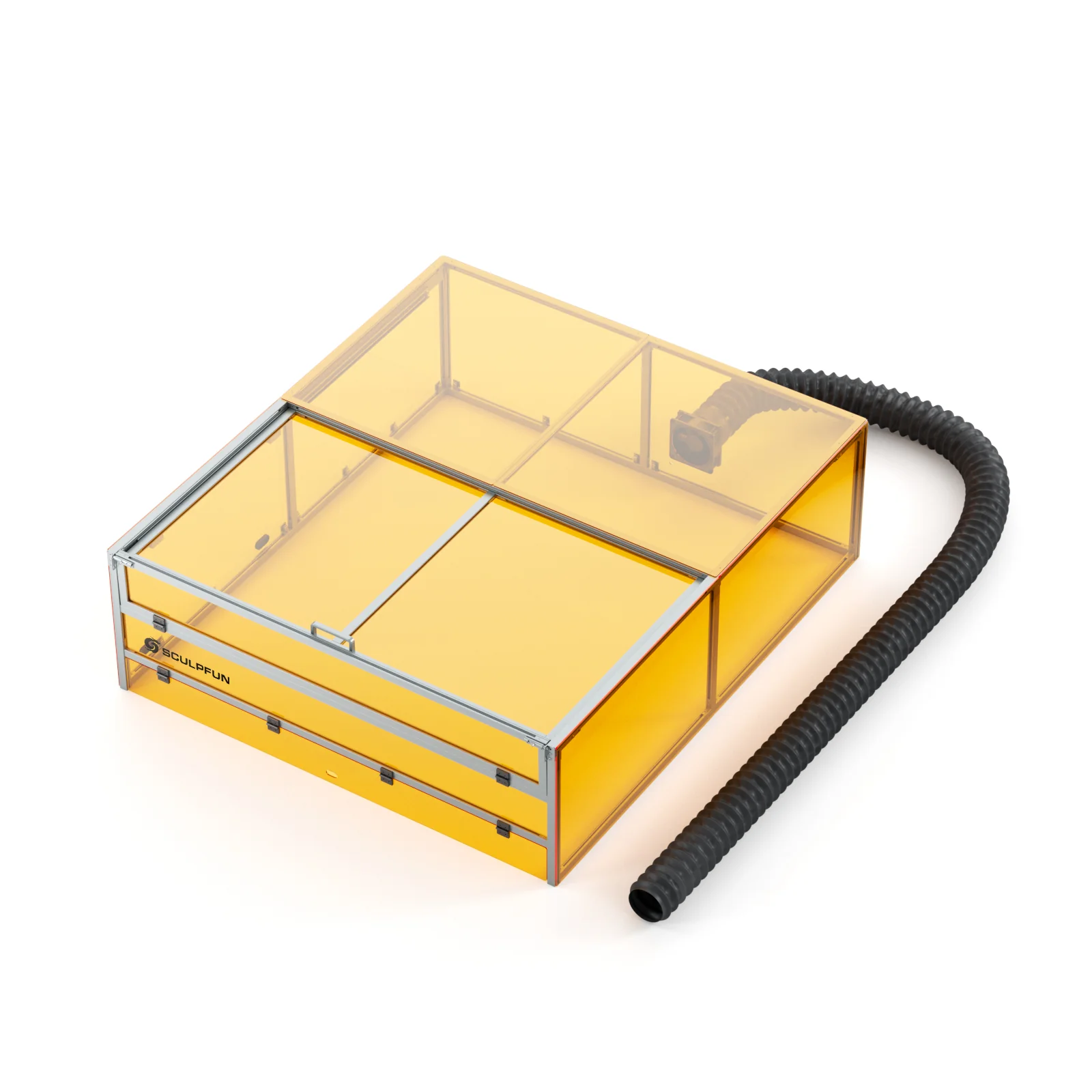

SCULPFUN B70 Enclosure For S70 MAX Smokeproof Fireproof with Fan

Biggest & Beautiful enclosure for your laser engraver, suitable for Sculpfun, Atomstack, iKier, Twotrees, Ortur etc brand laser machines



User Manual

Installation Guide

Main Features :

● Totally enclosed outer cover: closed air and smoke exhaust, isolate part of the reflected light, and shield part of the noise.

● 360° Visibility: using transparent color acrylic board, allowing users to view the status of the engraved items in all aspects.

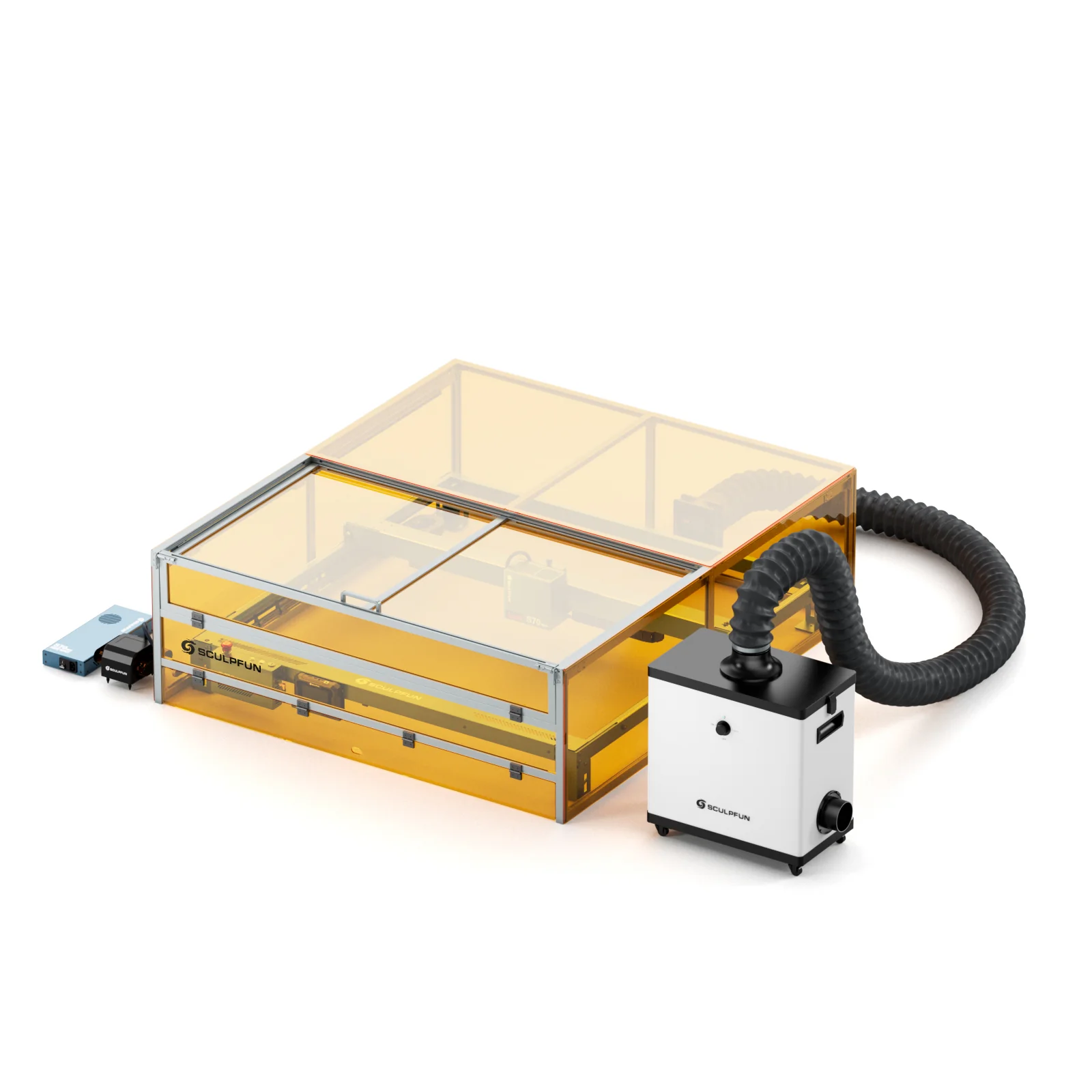

● Powerful exhaust fan: High-performance fan to quickly exhaust dirty air from the smoke exhaust box, which can be used with SP1 smoke purifier.

● Easy to use: sliding window, one-handed operation to open and close the door.

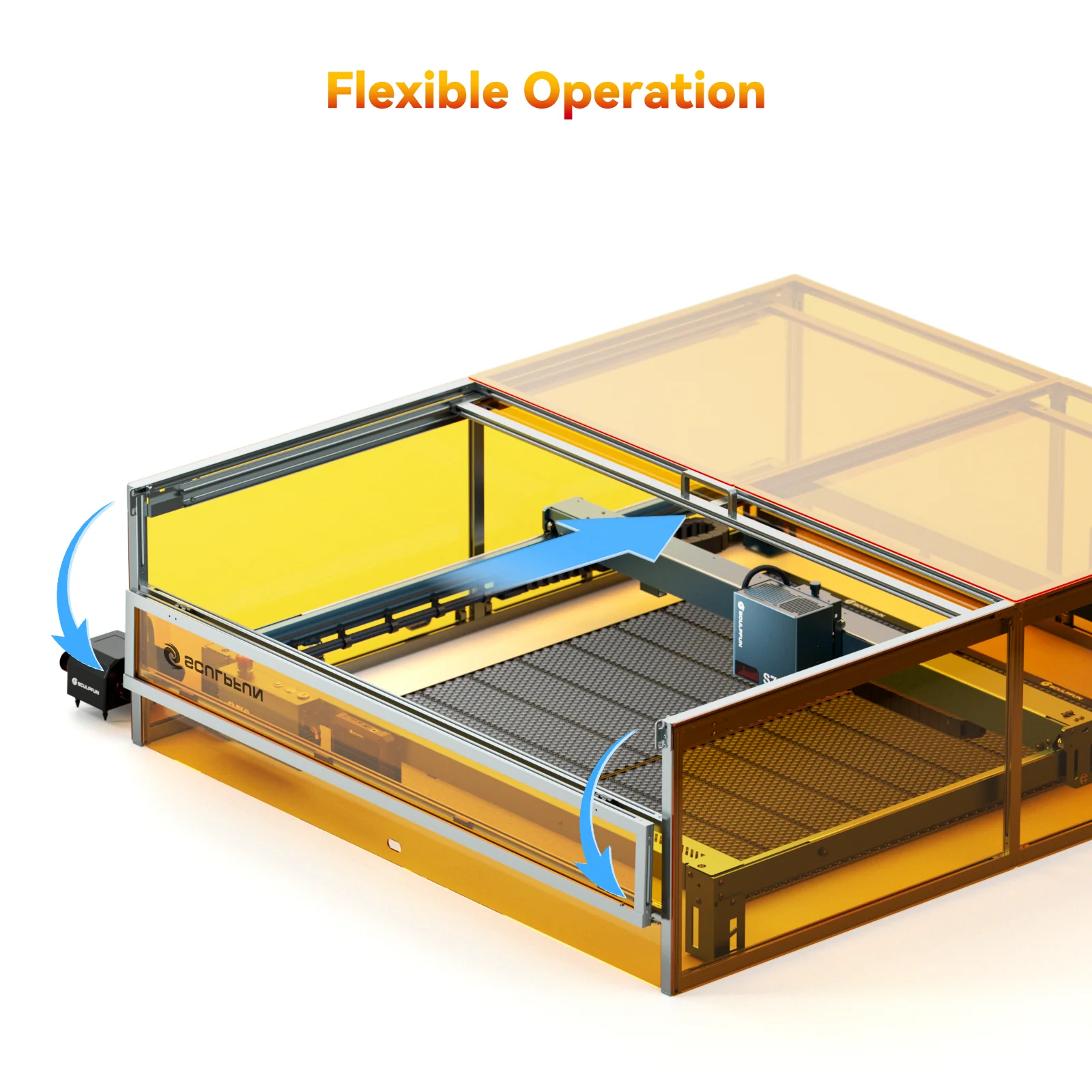

● Flexible design: movable upper and lower baffles - the front baffle can be lowered to make it easier to hold materials; the bottom can be opened to make it easy to clean up cutting debris, and keep longer materials in place.

● Metal + Acrylic frame: high strength, stable and durable.

Specification:

Product Name: B70 Enclosure
Model Name: B70
Stand Material: Aluminum
Enclosure Material: Saffron Clear Acrylic
Fan Size: 120×120×38mm
Fan Speed: 5700RPM
Diameter of exhaust pipe: 100mm
Length of exhaust pipe: 2m
Power supply specification: 24V

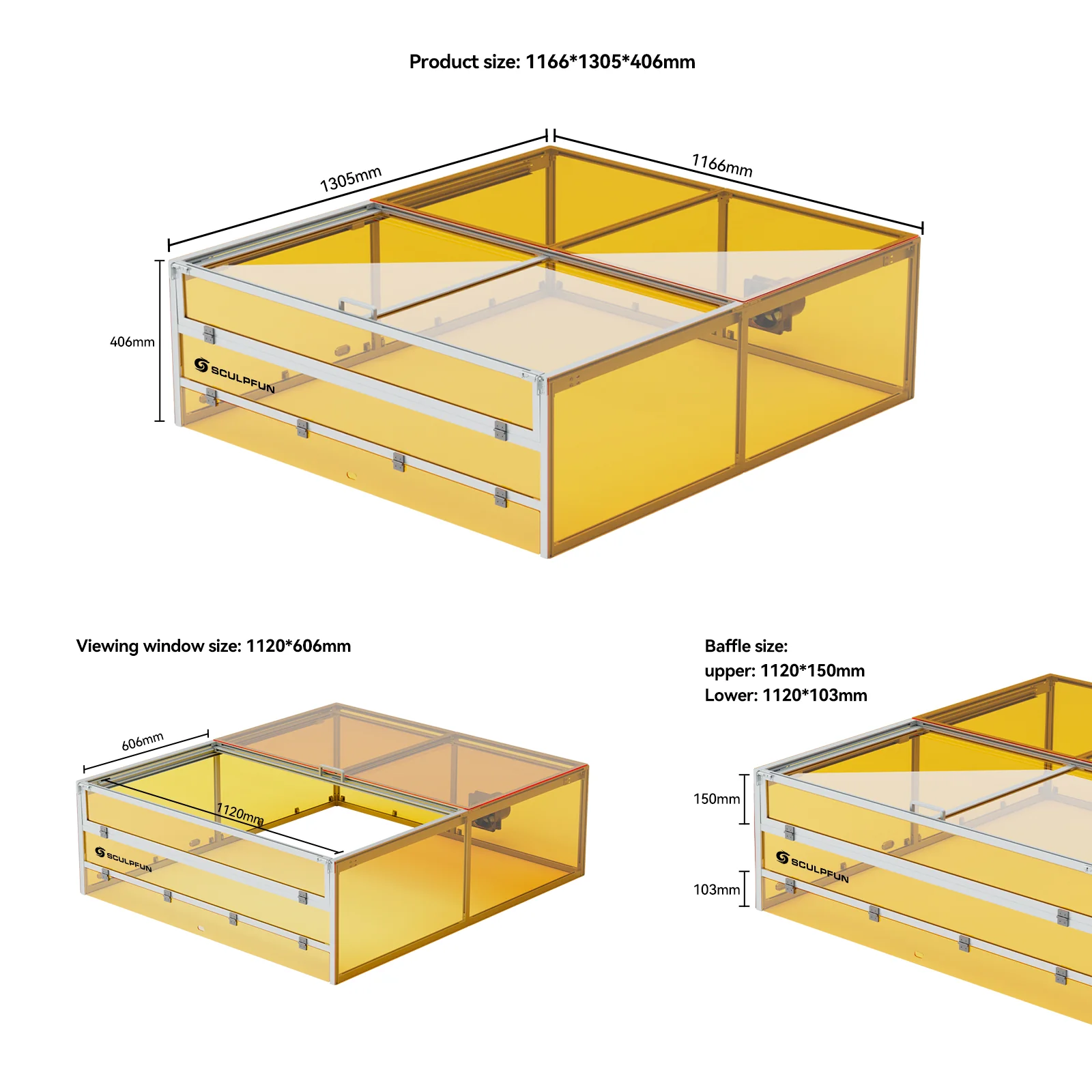

Product size: 1166*1305*406mm
Placeable area: 1120×1260×350mm

Front window area
Upper: 1120×150mm
Lower: 1120×103mm

Upper window area
1120×606mm

Package size
1180*680*175mm

Package weight: 28kg

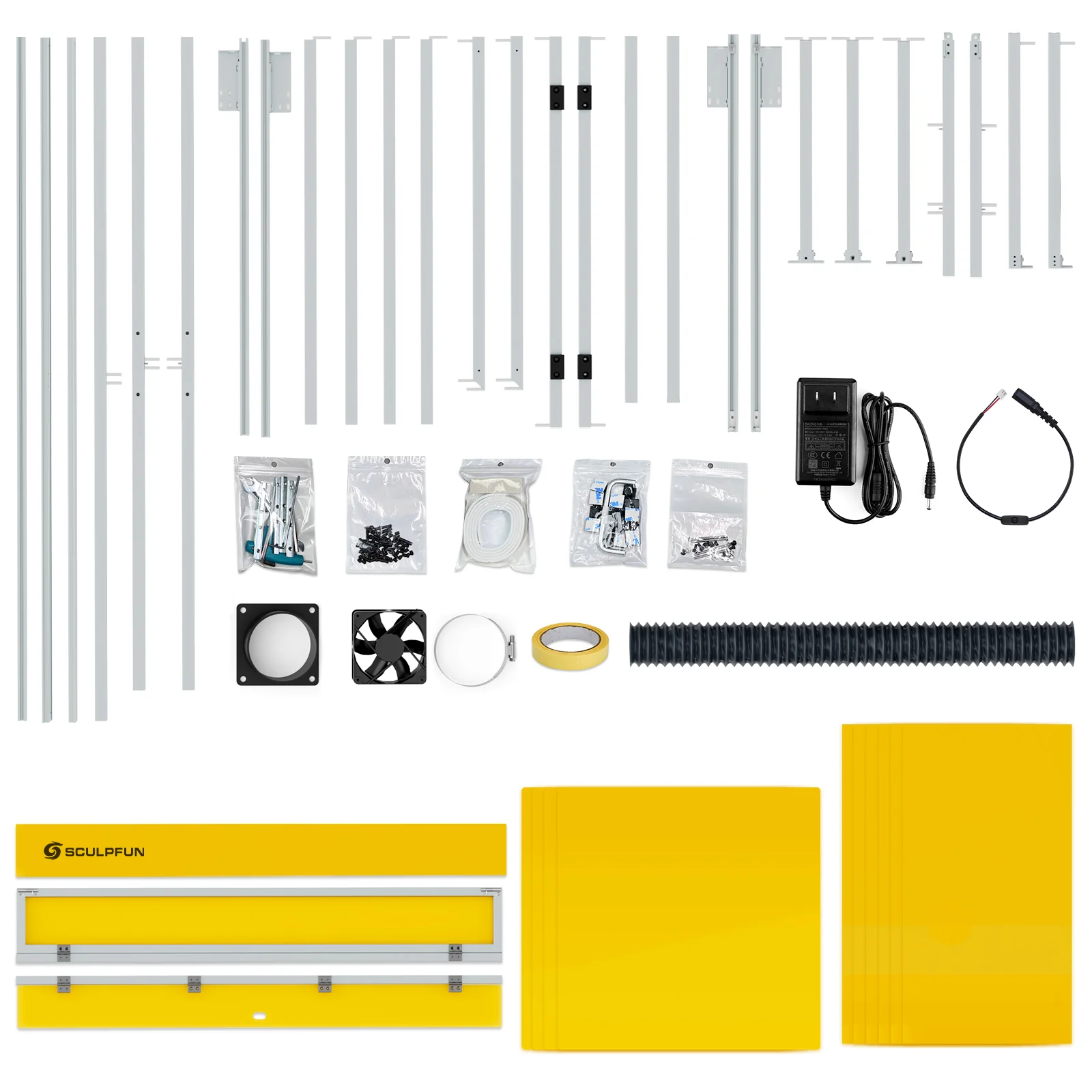

Packing list：

Acrylic pre-installed components*3
acrylic plates * 1 set
frame aluminum profiles* 1set
fans* 1
exhaust pipes* 1
conversion flanges* 1
screw packages* 1
wire buckle packages* 1
installation tool kits (screw wrenches, handles, etc.)* 1
instructions* 1
